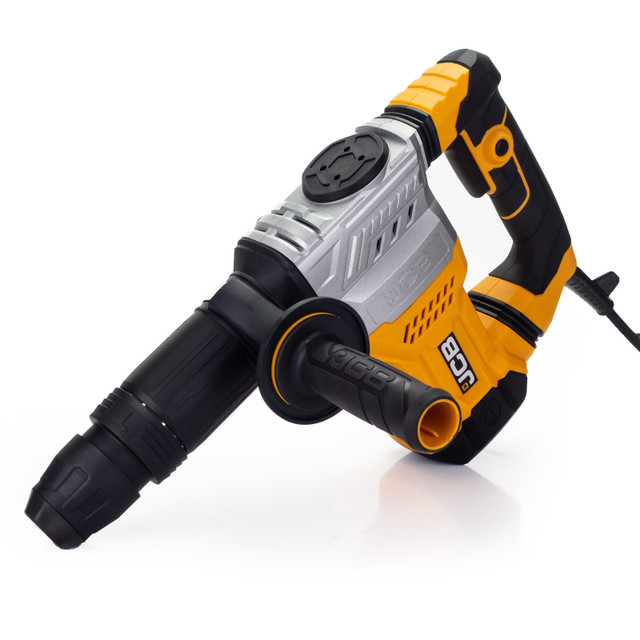

Compact yet powerful, the JCB-DH1300 delivers 15J of impact energy at 0–4100 bpm, making it ideal for chiseling and demolition jobs. Equipped with a brushed motor, multi-position side handle, and SDS Max® chuck, it ensures both control and performance. Supplied with point and flat chisels, grease, dust cover, and carbon brushes, this hammer is a complete kit for heavy-duty applications.
📌 Product Details
| Attribute | Value | Attribute | Value |
|---|
| UK Model No. | JCB-DH1300 | Product Name | Demolition Hammer |
| Product Weight (without packaging) | 6.5 KGS | Product Weight (with packaging) | 10.5 KGS |
| Product Dimension (L x H x W, without packaging) | 47 × 25 × 11 cm | Product Dimension (L x H x W, with packaging) | 59 × 42 × 14 cm |
📌 Technical Data
| Attribute | Value | Attribute | Value |
|---|
| Motor Type | Brushed | Trigger Lock-On | No |
| Input Voltage | 220-240V | Rotatable Rear Handle | No |
| Input Frequency | 50/60Hz | Overload Protection | No |
| Insulation Class | II | Cable Length | 3m |
| Input Power | 1300W | IP Rating | IPX0 |
| Impact Force | 15J | Side Handle (Anti-Vibration) Included | Yes |
| Impact Rate | 0–4100/min | Pin Wrench Included | N/A |
| Variable Speed | No | Adjustable Guard | N/A |
| Tool Holder Type | SDS Max® | Soft-start Device | Yes |
| Switch Type | Trigger | Spindle Lock | N/A |
📌 Noise and Vibration Information
| Attribute | Value | Attribute | Value |
|---|
| A-Weighted Sound Pressure (LpA) | 92.3 dB(A) | A-Weighted Sound Power (LwA) | 103.3 dB(A) |
| Vibration Emission Value (ah) | 13.56 m/s² | Uncertainty (K) | 1.5 m/s² |
| Uncertainty (KpA & KWA) | 3 dB(A) & 3 dB(A) | | |
📌 Directive / Standard
| Attribute | Value | Attribute | Value |
|---|
| EU Machinery Directive 2006/42/EC | Yes | EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU | Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 | Yes | UK Electromagnetic Compatibility Regulations 2016 No. 1091 | Yes |
| ROHS Legislation | Yes | PAHs Legislation | Yes |
| Restricted/Reportable Substances (REACH) | No | WEEE Conformity | Yes |

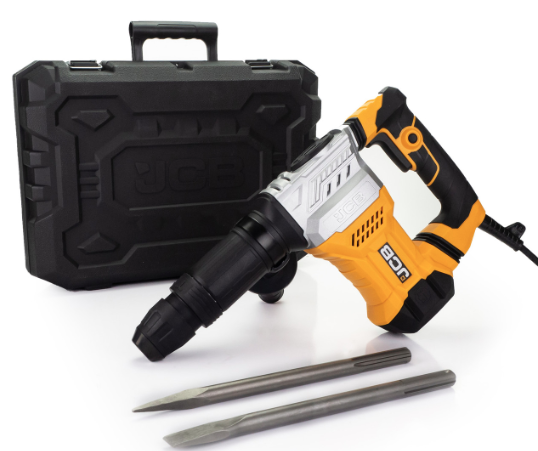

📌 Additional Information
| Attribute | Value | Attribute | Value |
|---|
| Accessories 1 | 1pc Point chisel (SDS Max) | Specification for Accessories 1 | 18 × 320 mm |
| Accessories 2 | 1pc Flat chisel (SDS Max) | Specification for Accessories 2 | 18 × 320 mm |
| Accessories 3 | 1 set of Carbon brushes | Specification for Accessories 3 | – |
| Accessories 4 | 1pc Grease | Specification for Accessories 4 | – |
| Accessories 5 | 1pc Dust cover | Specification for Accessories 5 | – |
| Carry Case | Yes (BMC) |
723.00
