The JCB-AG1400 combines performance with control. Powered by a 1400W motor and delivering up to 12,200 RPM, this grinder features variable speed adjustment for precision across different materials. Equipped with soft-start, overload protection, and power-off protection, it ensures safety and durability. The 125mm disc capacity, side handle, and supplied accessories make it a versatile tool for metalworking, cutting, and finishing.

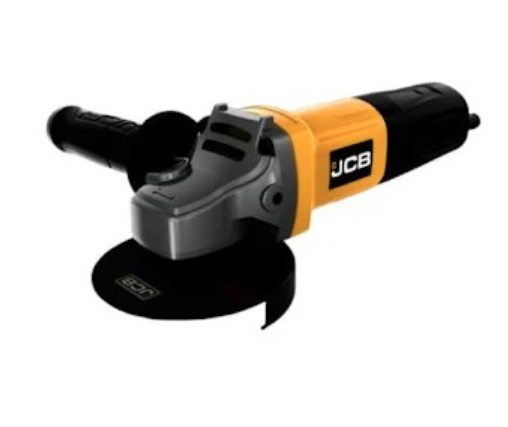

JCB-AG1400 – 1400W 125mm Angle Grinder (Brushed Motor)
📌 Product Details
| Attribute | Value | Attribute | Value |
|---|
| Product Name | Angle Grinder | Model No. | JCB-AG1400 |
| Product Weight (without packaging) | 2.3 KGS | Product Weight (with packaging) | 2.7 KGS |
| Product Dimension (L x H x W, without packaging) | 36 × 11 × 14 cm | Product Dimension (L x H x W, with packaging) | 36 × 12 × 15.5 cm |
📌 Technical Data
| Attribute | Value | Attribute | Value |
|---|
| Motor Type | Brushed | Trigger Lock-On | No |
| Input Voltage | 220-240V | Rotatable Rear Handle | No |
| Input Frequency | 50/60Hz | Overload Protection | No |
| Insulation Class | II | Cable Length | 3m |
| Input Power | 1400W | IP Rating | IPX0 |
| Input Current | – | Side Handle (Anti-Vibration) Included | Yes |
| No-Load Speed | 12200/min | Pin Wrench Included | Yes |
| Variable Speed | Yes | Adjustable Guard | Yes |
| Spindle Thread Size | M14 | Soft-start Device | Yes |
| Disc Capacity | 125mm | Power-Off Protection | Yes |
| Switch Type | Side switch | Spindle Lock | Yes |
📌 Noise and Vibration Information
| Attribute | Value | Attribute | Value |
|---|
| A-Weighted Sound Pressure (LpA) | 89.3 dB(A) | A-Weighted Sound Power (LwA) | 100.3 dB(A) |
| Vibration Emission Value (ahAG) | 9.379 m/s² | Uncertainty (K) | K = 1.5 m/s² |
| Uncertainty (KpA & KWA) | 3 dB(A) & 3 dB(A) | | |
📌 Directive / Standard
| Attribute | Value | Attribute | Value |
|---|
| EU Machinery Directive 2006/42/EC | Yes | EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU | Yes |
| UK Electrical Equipment (Safety) Regulations 2016 No. 1101 | Yes | UK Electromagnetic Compatibility Regulations 2016 No. 1091 | Yes |
| ROHS Legislation | Yes | PAHs Legislation | Yes |
📌 Additional Information
| Attribute | Value | Attribute | Value |
|---|
| Accessories 1 | 1pc JCB Anti-Vibration side handle | Specification for Accessories 1 | – |
| Accessories 2 | 1pc 125mm grinding wheel | Specification for Accessories 2 | – |
| Accessories 3 | 1pc Pin Wrench | Specification for Accessories 3 | – |
