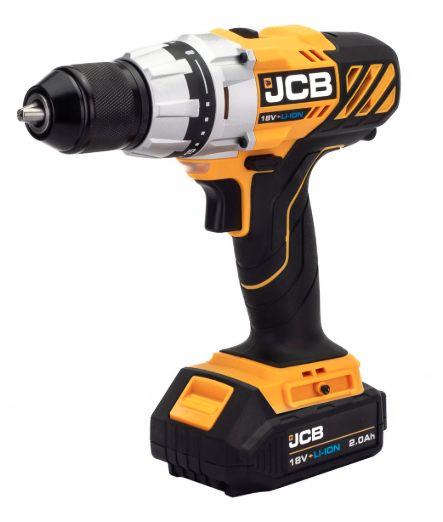

JCB 18V Cordless Brushed Drill Driver – Bare (JCB-18DD)

547.00

Category: Tools

The JCB 18V Cordless Drill Driver is a reliable choice for everyday drilling and driving. With 45Nm of torque, a 2-speed gearbox, and 19+1 clutch settings, it’s ideal for wood and metal applications. Lightweight and comfortable to use with an LED light and belt clip, this drill driver offers excellent value for both professionals and DIY users.

Product Specification Sheet – JCB-18BLCD

📌 Product Details

Attribute	Value	Attribute	Value
UK Model No.	JCB-18DD-B	Product Name	JCB 18V Cordless Brushed Drill Driver – body only
Product Dimension (L x H x W)	22.5 x 19 x 7 cm	Weight (body only)	1.3 kg

📌 Technical Data

Attribute	Value	Attribute	Value
Motor Type	Brushed	Gears	2
Voltage	18V dc	Clutch Positions	19 + 1 Mode
Max Torque (Nm)	45Nm	Impact Rate	N/A
No-Load Speed	0 – 450/min (RPM), 0 – 1600/min (RPM)	Switch Type	Trigger
Speed	Variable	Chuck Capacity	1.5mm – 13mm (Keyless)
Rotation	Forward & Reverse	LED Working Light	Yes
Belt Clip	Yes	Overload Protection	Yes
Max Drilling Capacity (Metal)	13mm	Max Drilling Capacity (Wood)	30mm
Max Drilling Capacity (Masonry)	N/A

📌 Noise and Vibration Information

Attribute	Value	Attribute	Value
A-Weighted Sound Pressure (LpA)	No load: 64 dB(A)	A-Weighted Sound Power (LwA)	No load: 75 dB(A)
Vibration Emission Value (ah, D)	Drilling into metal: 1.692 m/s²	Uncertainty (K)	1.5 m/s²
Uncertainty (KpA & KWA)	5 dB(A)

📌 Directive / Standard

Attribute	Value	Attribute	Value
ROHS Directive	Yes	PAHs Legislation	Yes
Restricted/Reportable Substances (REACH)	No	WEEE Conformity	Yes

📌 Additional Information

Attribute	Value	Attribute	Value
Instruction Manual Code	IM-18DD	Manual Bag	Included
Accessories 1	1 x 50mm double ended screwdriver bits	Specification for Accessories 1	PH2 x SLOT 6 (CR-V)
Accessories 2	N/A	Specification for Accessories 2	N/A
Accessories 3	N/A	Specification for Accessories 3	N/A
