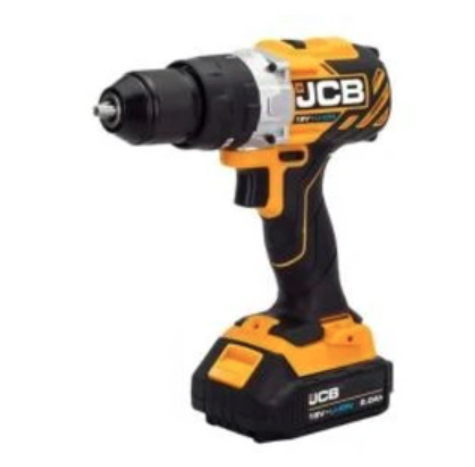

JCB 18V Brushless Cordless Combi Drill – Bare (JCB-18BLCD)

667.00

Category: Tools

Power through any project with the JCB 18V Brushless Cordless Combi Drill. Designed with a high-performance brushless motor and 2-speed gearbox, it delivers up to 65Nm of torque and an impact rate of 28,800 bpm. Featuring 20+3 clutch positions, variable speed control, and a keyless 13mm chuck, it ensures versatility for drilling into wood, metal, and masonry. Compact and lightweight at just 1.4kg, with an LED work light and belt clip, this drill is perfect for professionals and DIY enthusiasts alike.

Product Specification Sheet – JCB-18BLCD

📌 Product Details

Attribute	Value	Attribute	Value
UK Model No.	JCB-18BLCD-B (drill only)	Product Name	JCB 18V Brushless Cordless Combi Drill – bare
Product Dimension (L x H x W)	20.3 x 19.5 x 7.0 cm	Weight (body only)	1.4 kg

📌 Technical Data

Attribute	Value	Attribute	Value
Motor Type	Brushless	Gears	2
Voltage	18V dc	Clutch Positions	20 + 3 Modes
Max Torque (Nm)	65Nm	Impact Rate	0 – 28,800 bpm
No-Load Speed	0 – 500/min, 0 – 1800/min	Switch Type	Trigger
Speed	Variable	Chuck Capacity	1.5mm – 13mm (keyless)
Rotation	Forward & Reverse	LED Working Light	Yes
Max Drilling Capacity Ø (metal)	13mm	Max Drilling Capacity Ø (wood)	35mm
Max Drilling Capacity Ø (masonry)	10mm	Belt Clip	Yes
Overload Protection	Yes

📌 Noise and Vibration Information

Attribute	Value	Attribute	Value
A-Weighted Sound Pressure (LpA)	No Load: 72 dB(A), Test under load: 75 dB(A)	A-Weighted Sound Power (LwA)	No Load: 83 dB(A), Test under load: 86 dB(A)
Vibration Emission Value (ah, ID)	Impact drilling into concrete: 6.3 m/s²	Vibration Emission Value (ah, D)	Drilling into metal: 4.0 m/s²
Uncertainty (KpA & KWA)	5 dB(A)	Uncertainty (K)	1.5 m/s²

📌 Directive / Standard

Attribute	Value	Attribute	Value
ROHS Directive	Yes	PAHs Legislation	Yes
Restricted/Reportable Substances (REACH)	No	WEEE Conformity	Yes

📌 Additional Information

Attribute	Value	Attribute	Value
Accessories 1	1 x 50mm double ended screwdriver bits	Specification for Accessories 1	PH2 x SLOT 6 (CR-V)
Accessories 2	N/A	Specification for Accessories 2	N/A
Accessories 3	N/A	Specification for Accessories 3	N/A
