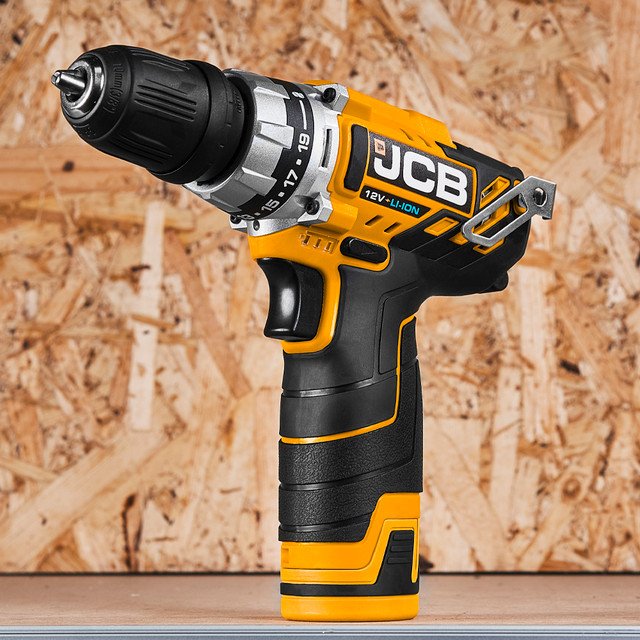

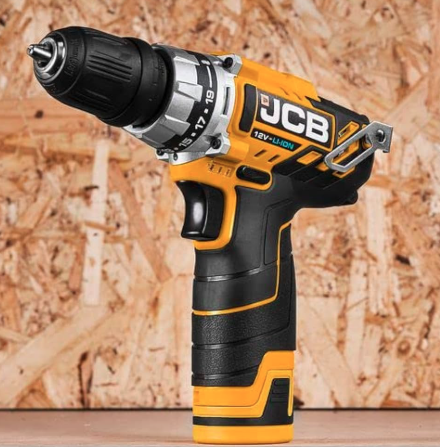

JCB 12V Cordless Combi Drill – Bare (JCB-12DC)

333.00

Category: Tools

Compact yet powerful, the JCB 12V Combi Drill is perfect for smaller jobs and tight spaces. Delivering 30Nm torque and speeds up to 1,300 RPM, it can handle drilling in wood, metal, and masonry with ease. Featuring 20+3 clutch settings, a 10mm keyless chuck, LED light, and overload protection, this lightweight 0.91kg drill is designed for portability without sacrificing performance.

Product Specification Sheet – JCB-12DC

📌 Product Details

Attribute	Value	Attribute	Value
Product Name	JCB 12V Cordless Brushed Combi Drill – body only
Product Dimension (L x H x W)	19.5 x 17 (18.5 with battery fitted) x 5.5 cm	Product Weight (body only)	0.91 kg (1.1 kg with 1.5Ah battery)

📌 Technical Data

Attribute	Value	Attribute	Value
Motor Type	Brushed	Gears	2
Voltage	12V dc	Clutch Positions	20 + 3 Modes
Max Torque (Nm)	30Nm	Impact Rate	0 – 5250 / 0 – 19,500 bpm
No-Load Speed	0 – 350/min (RPM), 0 – 1300/min (RPM)	Switch Type	Trigger
Speed	Variable	Keyless Chuck Capacity	10mm (3/8″)
Rotation	Forward & Reverse	LED Working Light	Yes
Belt Clip	No	Overload Protection	Yes
Max Drilling Capacity (Metal)	10mm	Max Drilling Capacity (Wood)	20mm
Max Drilling Capacity (Masonry)	10mm

📌 Noise and Vibration Information

Attribute	Value	Attribute	Value
A-Weighted Sound Pressure (LpA)	No load: 66 dB(A), Test under load: 75 dB(A)	A-Weighted Sound Power (LwA)	No Load: 77 dB(A), Test under load: 86 dB(A)
Vibration Emission Value (ah, ID)	Impact drilling into concrete: 8.548 m/s²	Vibration Emission Value (ah, D)	Drilling into metal: 3.532 m/s²
Uncertainty (K)	1.5 m/s²	Uncertainty (KpA & KWA)	5 dB(A)

📌 Directive / Standard

Attribute	Value	Attribute	Value
ROHS Directive	Yes	PAHs Legislation	Yes
Restricted/Reportable Substances (REACH)	No	WEEE Conformity	Yes

📌 Additional Information

Attribute	Value	Attribute	Value
Instruction Manual Code	IM-12CD	Manual Bag	Included
Accessories 1	1 x 50mm double ended screwdriver bits	Specification for Accessories 1	PH2 x SLOT 6 (CR-V)
Accessories 2	N/A	Specification for Accessories 2	N/A
Accessories 3	N/A	Specification for Accessories 3	N/A
